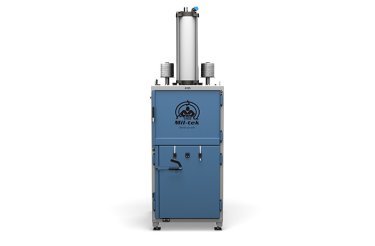

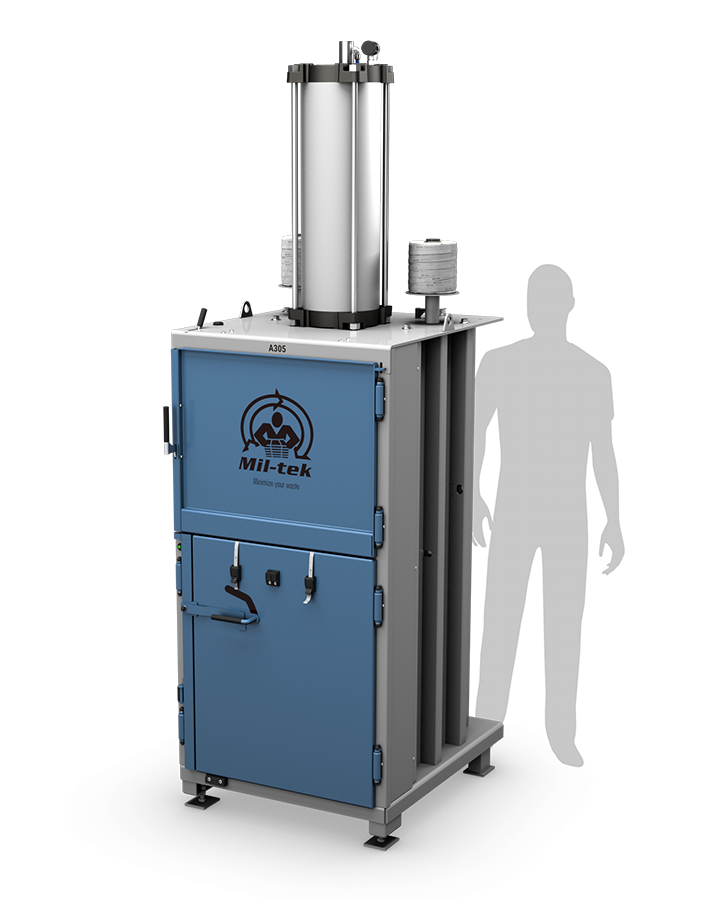

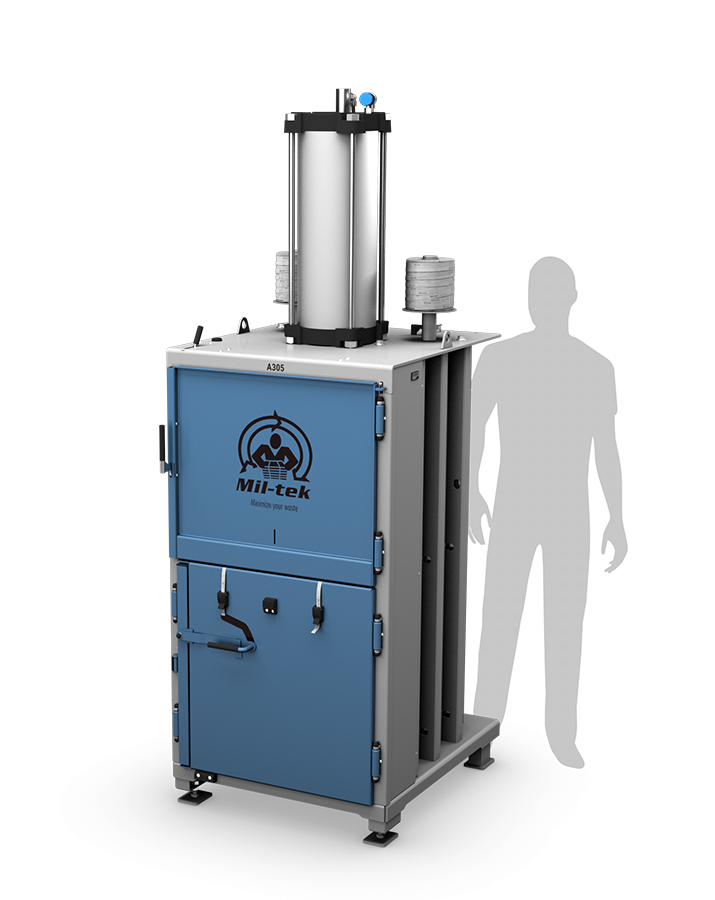

A305 Cardboard & Plastic Baler


Powerful pneumatic technology suitable for both cardboard and plastic.  At under 1m², the small footprint A305 features a revolutionary double-cycling cylinder and an automated bale-out mechanism.

  • Bale 100kg cardboard & and 170kg plastic
  • Double-acting cylinder with ECODrive
  • Deep chamber for larger materials
  • Automated bale-out function
  • Super-fast pressing cycle
  • EN16500 as standard
pneumatic-air-power-badge cardboard-badge plastic-badge

A medium-size baler with a powerful, double-cycling cylinder and deep chamber, the A305  is adjustable for both cardboard and plastic and features a simple, two-handed bale out mechanism.

The Mil-tek A305 baler features cutting edge pneumatic technology, ensuring extremely efficient compaction with minimal power use.

Running at just 8 bars of pressure, the A305 can compact with 4 tonnes of pressing force and operate quietly at a noise rate of less than 57 dB(a).

pneumatic-air-power-badge cardboard-badge plastic-badge

A305 baler for cardboard and plastic

The A305 is the third generation of Mil-tek pneumatic balers, featuring cutting-edge pneumatic technology that uses compressed air through the cylinder to press and release the pressing plate.

A double-acting cylinder increases the pressing cycle speed and force. Patented ECO-Drive technology efficiently distributes power to the pressing plate on the downward cycle and locks the plate in place to further compact the material. Compressed air is used to return the pressing plate on release.


Mil-tek A305 baler

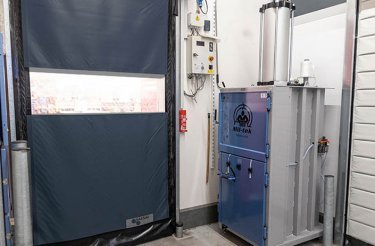

The A305 is adaptable to the size of the workspace, slotting seamlessly into smaller workspaces or plugging into the airline in large facilities.

The A305 can create bales of up to 100kg cardboard and 170kg plastic and can be adapted to a range of other materials. The bale size can be adjusted through 6 different sizes to ensure the optimal bale size for the material and working environment.

See more cardboard balers.


Automated bale-out

A double-cycling cylinder increases the pressing cycle speed and eliminates the need for return springs. Patented ECODrive technology efficiently distributes power to the pressing plate on the downward cycle and locks the plate in place to further compact the material.

The A305 features a handy and safe auto-bale out mechanism. In accordance with EN16500 safety standards, the user stands to the side of the machine and activates a two-handed mechanism to release the bale. With a floorspace footprint of just 0.85m², the A305 is adaptable to most workplaces.


Technical specifications

Degree of compaction


Cardboard Bale

Plastic Bale

Pressing cycle

< 100

< 175

10-20 sec.

Bale Size


760-880 mm


655 mm


850 mm


13 mm (#999011)

Door Opening


570 mm


655 mm


815 mm

Machine Size


2530 mm


825 mm


1034 mm


515 kg


Noise Level

< 70 db (A)


Pressing force at 8 bars

4000 kg



CE, EN16500, UKCA
