Super-fast pneumatic pressing power with a 1.5m2
footprint. The 4th generation A509 cardboard and
plastic baler combines speed and power for heavy-duty
efficiency.
A Heavy-duty baler with a footprint of just 1.5m², the A509 compacts with 8 tonnes of force and boasts a super-fast pressing cycle of less than 12 seconds.
Similar refurbished machines
from £36 per week
The Mil-tek A509 is designed to handle high volumes of recyclable waste with ease. Its wide loading door and large pressing chamber make it ideal for bulky cardboard, plastic and other recyclable materials, producing bales of up to 210 kg of cardboard or 280 kg of plastic.
Like all Mil-tek pneumatic balers, the A509 complies fully with the EN16500 safety standard and features a simple, two-handed bale ejection system for safe and efficient operation.
The A509 features two heavy-duty, double-acting cylinders powered entirely by compressed air, delivering fast and reliable compaction.
Unlike hydraulic machines, Mil-tek pneumatic balers operate without hydraulic oil, reducing the risk of leaks and contamination while keeping maintenance to a minimum.
The A509 connects directly to an existing compressed air supply, providing an efficient, clean and reliable power source for demanding working environments.
Carboard Bale
Plastic Bale
Pressing cycle
< 210 kg
< 280 kg
12-25 sec.
Height
710-830 mm
Width
1250 mm
Depth
835 mm
Banding
19 mm (#999021)
Height
570 mm
Width
1250 mm
Depth
800 mm
Height
2380 mm
Width
1420 mm
Depth
1040 mm
Weight
870 kg
Noise Level
< 70 db (A)
Pressing force at 8 bars
8000 kg
Certifications
CE, EN16500, UKCA

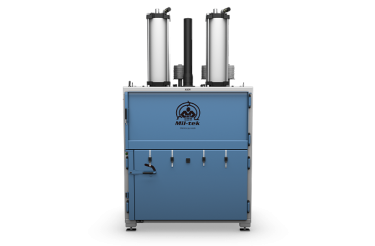

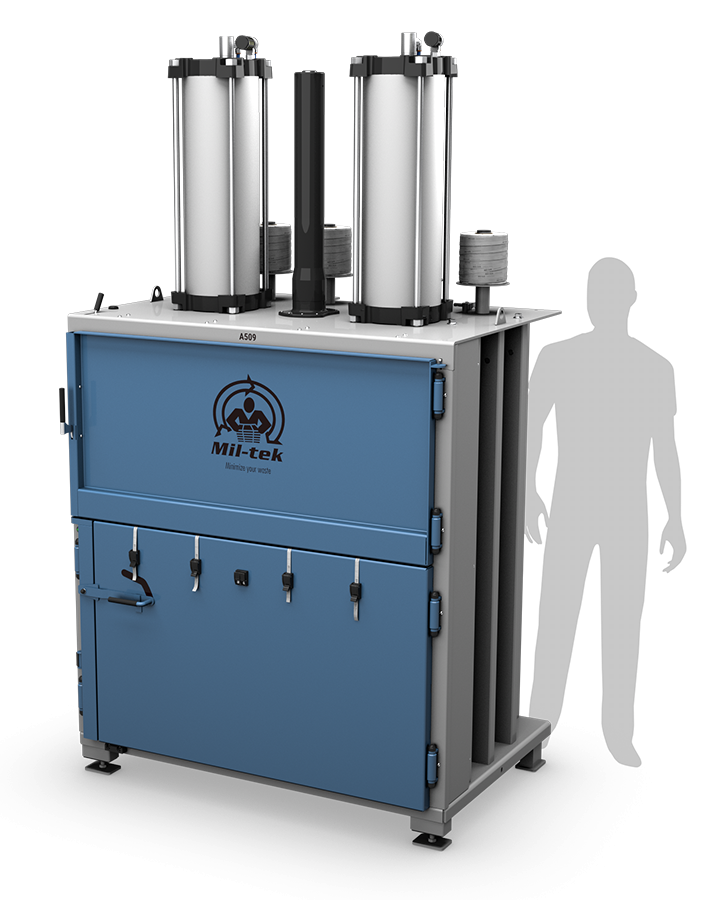

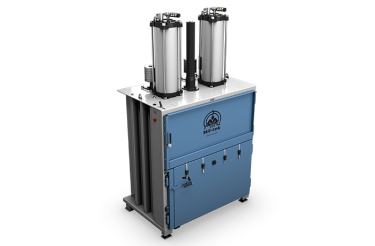

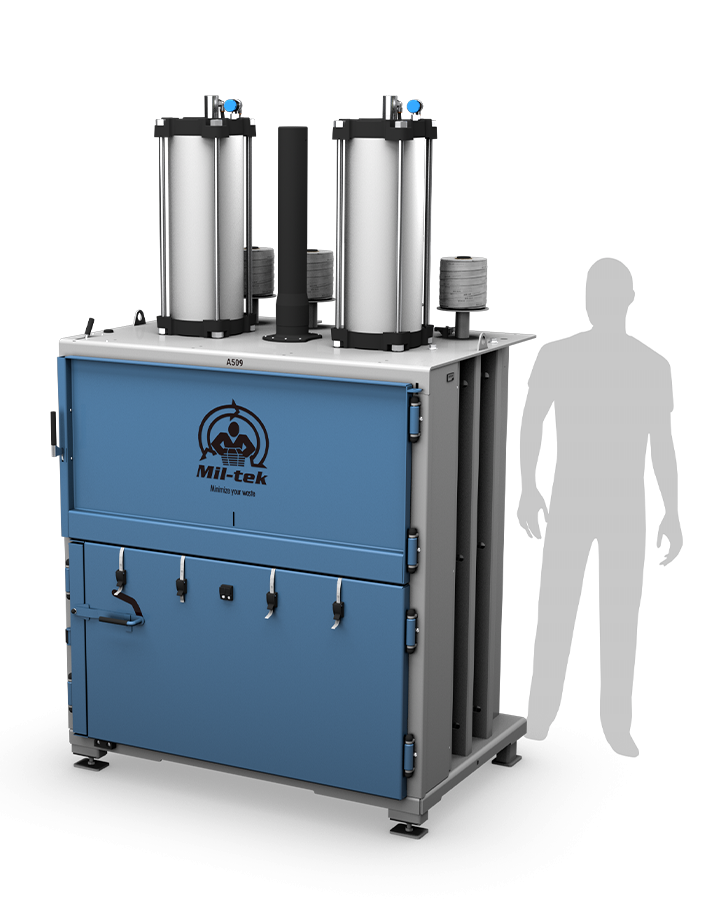

A509 Cardboard & Plastic Baler
This baler is available with dust extraction!
