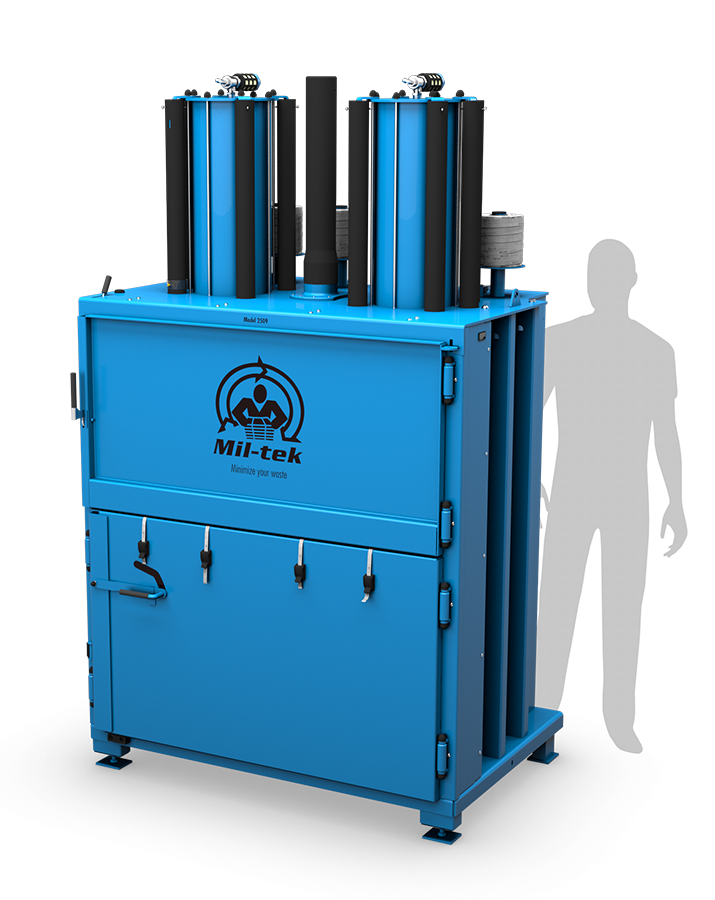

2509 Plastic Cardboard Baler

2509 Plastic Cardboard Baler

The Mil-tek 2509 baler is the perfect solution for dealing with large volumes of cardboard and/or plastic, particularly when space is a premium. Despite its small footprint, the 2509 can produce a bale of up to 400 kg.

  • Handles large volumes quickly and efficiently
  • Automated bale-out mechanism
  • Extra-wide pressing chamber
  • New EN16500 safety features
  • Faster pressing cycle & bale-out indicator
  • Improved fail-safes and locking mechanisms
pneumatic-air-power-badge cardboard-badge plastic-badge

Constant pressure ensures an extremely dense bale is produced that is both easy to handle and easy to recycle. The wide door and deep chamber of the Mil-tek 2509 baler means large volumes of cardboard can be baled without the need for breaking down or flat packing. Plastic packaging stored in Mil-tek plastic bag stands can be placed directly into the baler saving time and therefore cost when dealing with packaging waste.

pneumatic-air-power-badge cardboard-badge plastic-badge

The Successor

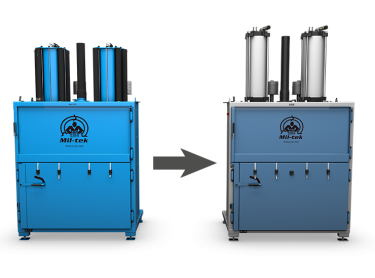

The 2509 baler is out of production. The successor is better in every way – check out the A509:



Handles large volumes

The Mil-tek 2509 has a wide door opening making it perfect for loading large cardboard boxes and other materials. It also has two powerful cylinders applying constant pressure resulting in dense and heavy bales.The Mil-tek 2509 is used in companies and locations where there is a need for handling a larger amount of waste without taking up much floor space. The 2509 baler is ideal for loading whole cardboard boxes, eliminating the need for flat packing and regular trips to outside bins/waste containers.

Easy transport

The cardboard bales fit perfectly on to a standard pallet, making them easy to store and transport.The Mil-tek 2509 can be situated close to where waste is generated, and its safety and operational features makes the 2509 an ergonomic, easy, clean and safe machine to use. The Mil-tek 2509 is powered by compressed air, either directly from an existing air-line or from a compressor supplied by Mil-tek. This means that the Mil-tek 2509 is free of both electrical and hydraulic components, minimizing the risk of fire and completely eliminating the risk of oil contamination.An automated bale-out function makes it fast, safe and easy to empty the baler.

Technical specifications

Degree of compaction

85-90%

Cardboard bale

Plastic bale

Pressing cycle

< 300 kg

< 400 kg

20-30 sec.

Bale Size

Height

875 mm

Width

1250 mm

Depth

830 mm

Banding

13mm (#999011)

Door Opening

Height

555 mm

Width

1250 mm

Depth

800 mm

Machine Size

Height

2370 mm

Width

1435 mm

Depth

1035 mm

Weight

945 kg

Noise

Noise Level

< 70 dB (A)

Pressure

Pressing force at 8 bars

8500 kg

Approvals

Certifications

CE, EN16500

Mil-tek 2509 Baler

Download Product Sheet
